Thru-bolted Lever/Escutcheon assemblies integrate and align with lock body.
Standard Finish: Polished Brass, Satin Chrome.

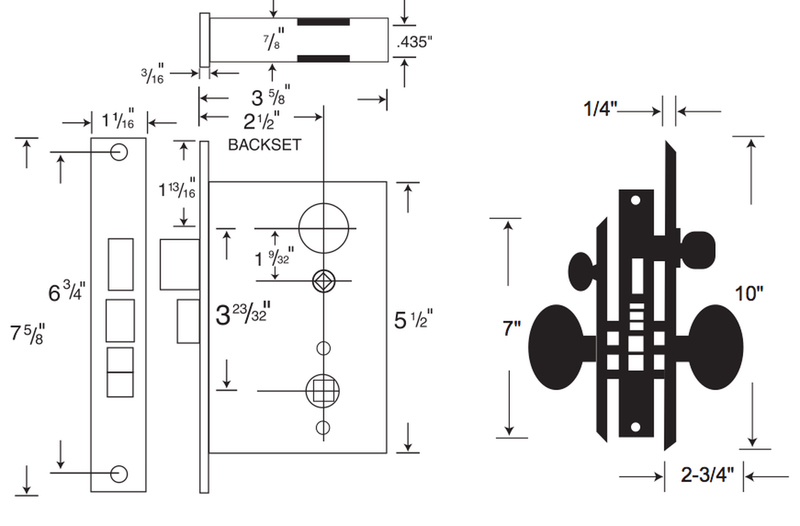

Exterior: Wrought brass, screwless Lever/Escutcheon on steel reinforced brass plate, 10" x 2-3/4". Two thru posts pass thru lock body. Integral spring-loaded 9/32" spindle.
Interior: Wrought brass, screwless Lever/Escutcheon on steel reinforced brass plate, 7" x 2-1/4". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring- loaded 9/32" spindle.
Cylinder: 5-pin cylinder, 1-1/8" long
Strike: Conforms to ANSI spec.A115.1, 4-7/8" x 1-1/4" x 3/32" thick, 5/8" curved lip
Door Thickness: 1-1/4" to 1-3/4"
Backset: 2-1/2"
Lock Front: 7-5/8" x 1-1/16", .187" thick, flat or 3° bevel, solid brass. Optional front: 8" x 1-1/4" steel backplate with brass cover plate.
Deadbolt: Cast brass, 1" throw
Latch: Solid brass, 1/2" throw, reversible
Rocker Switch: Locks or unlocks hub
Hubs: 9/32" on square with steel security separator
Hub Lock Arm: Steel, .125" thick
Case: High pressure cast Zamac, baked enamel finish
