Sugatsune HES3D-E190 3-Way Adjustable Concealed Hinge (Each)

Save 20%
SugatsuneSKU: SUG-HES3D-E190DC-UL

Price:
Sale price$111.20 Regular price$139.00

Description

About Sugatsune

Since 1930, Sugatsune has been a trusted source worldwide for helping people find the right hardware to complete their projects. A manufacturer of high-quality and durable hardware systems, Sugatsune offers a vast line-up of hardware and provides the support you need to successfully complete your projects.

From residential and commercial architectural hardware to industrial hardware components for industries including food, medical equipment, transportation, and aerospace, you can find the right solution to help connect and show off your creations. Sugatsune America is AS9120 B and ISO9001: 2015 certified and provides unique component hardware products in our effort to create convenience and satisfaction for people

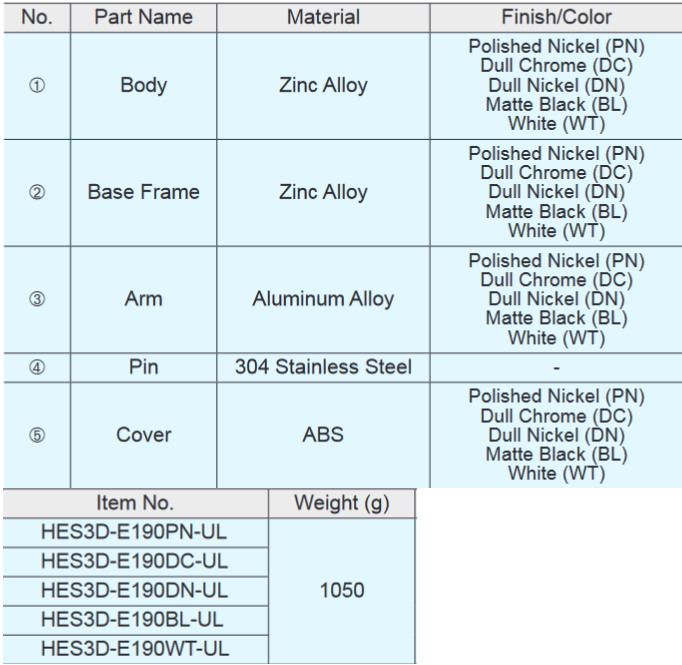

Specification

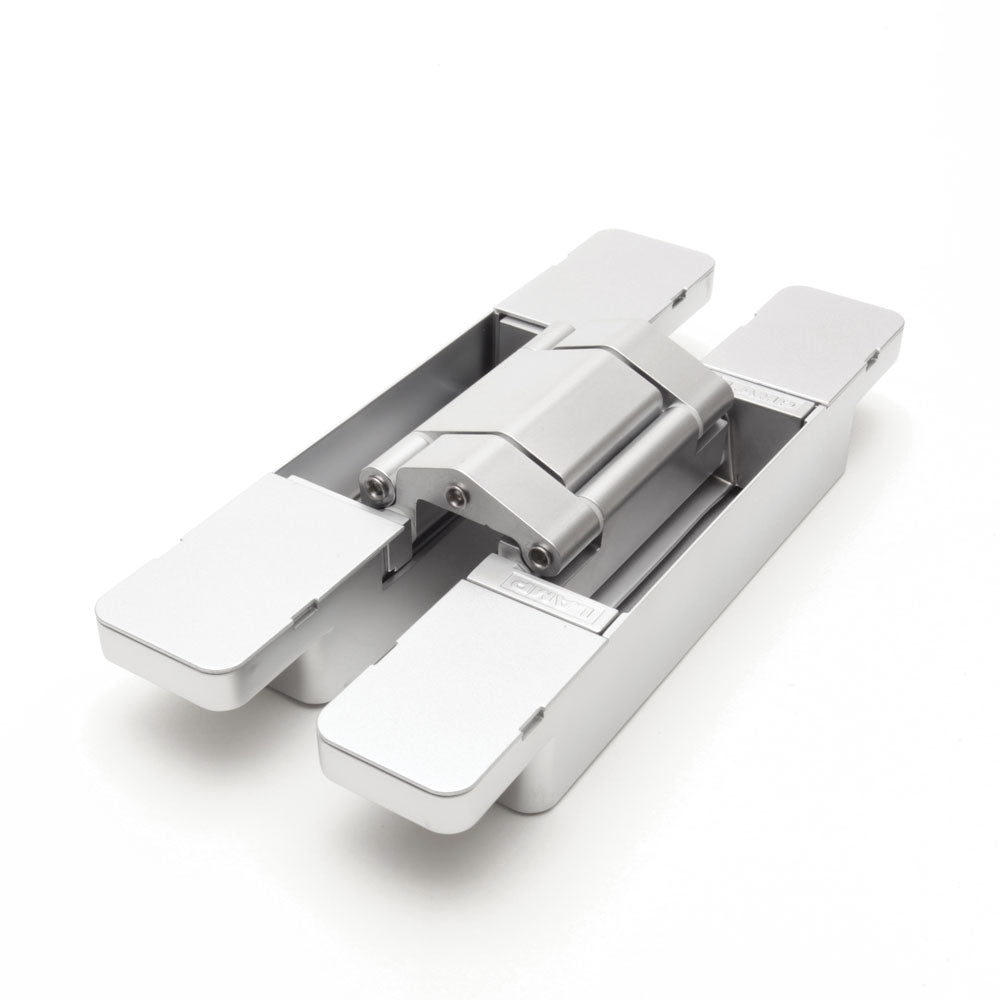

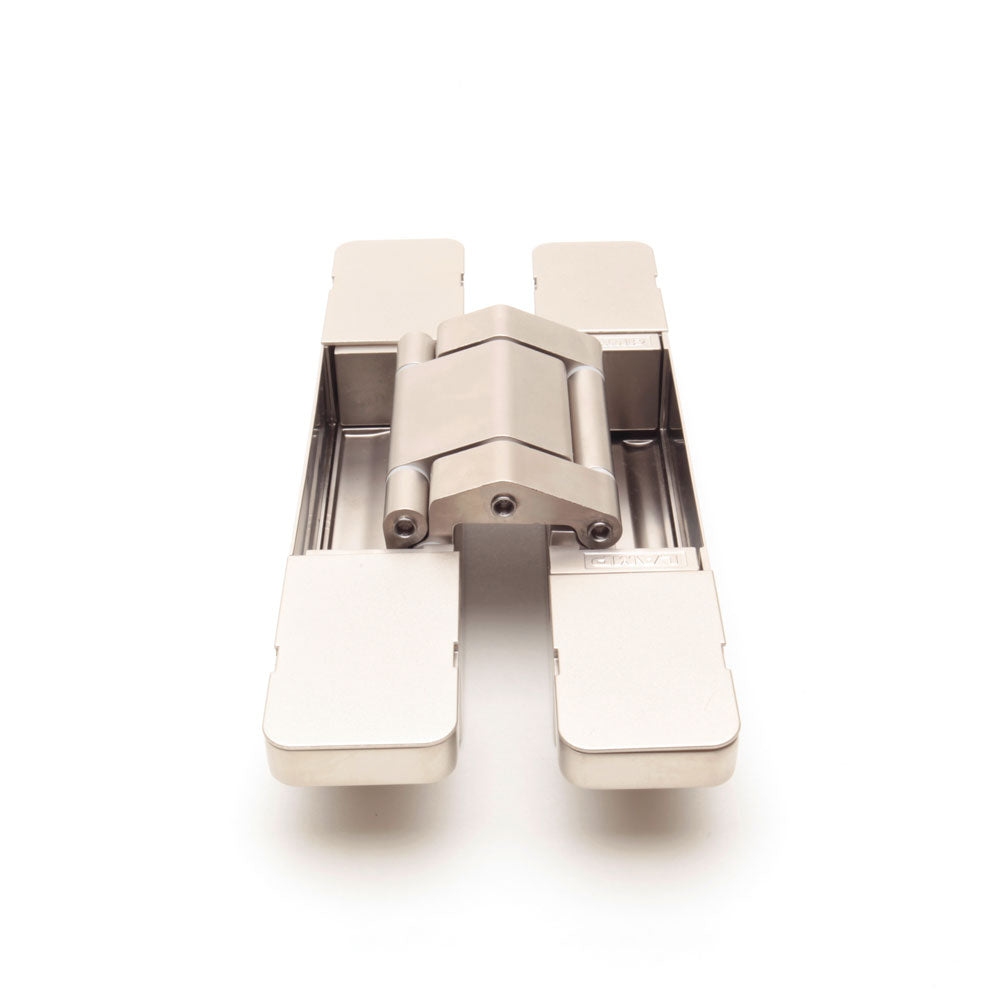

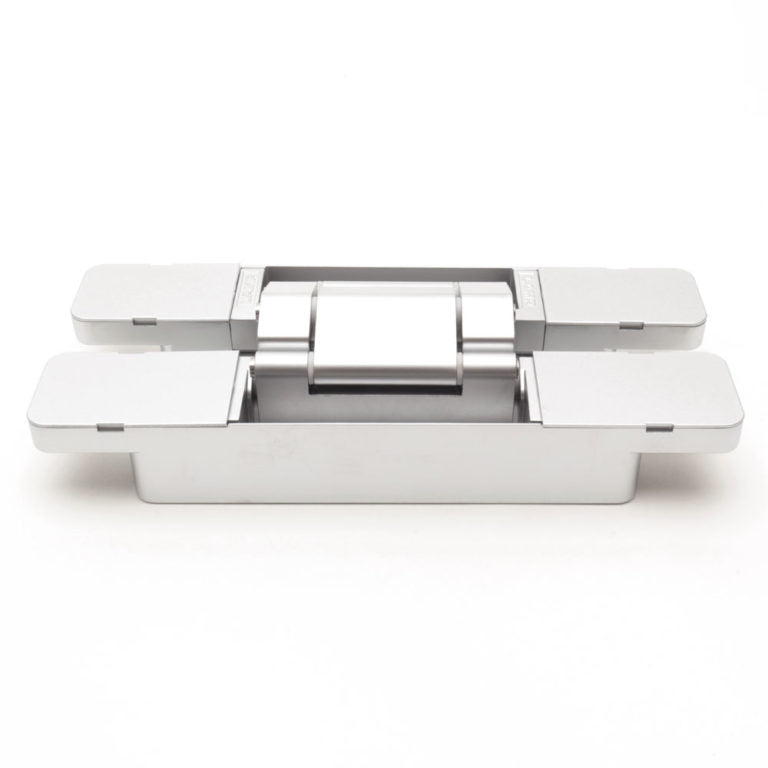

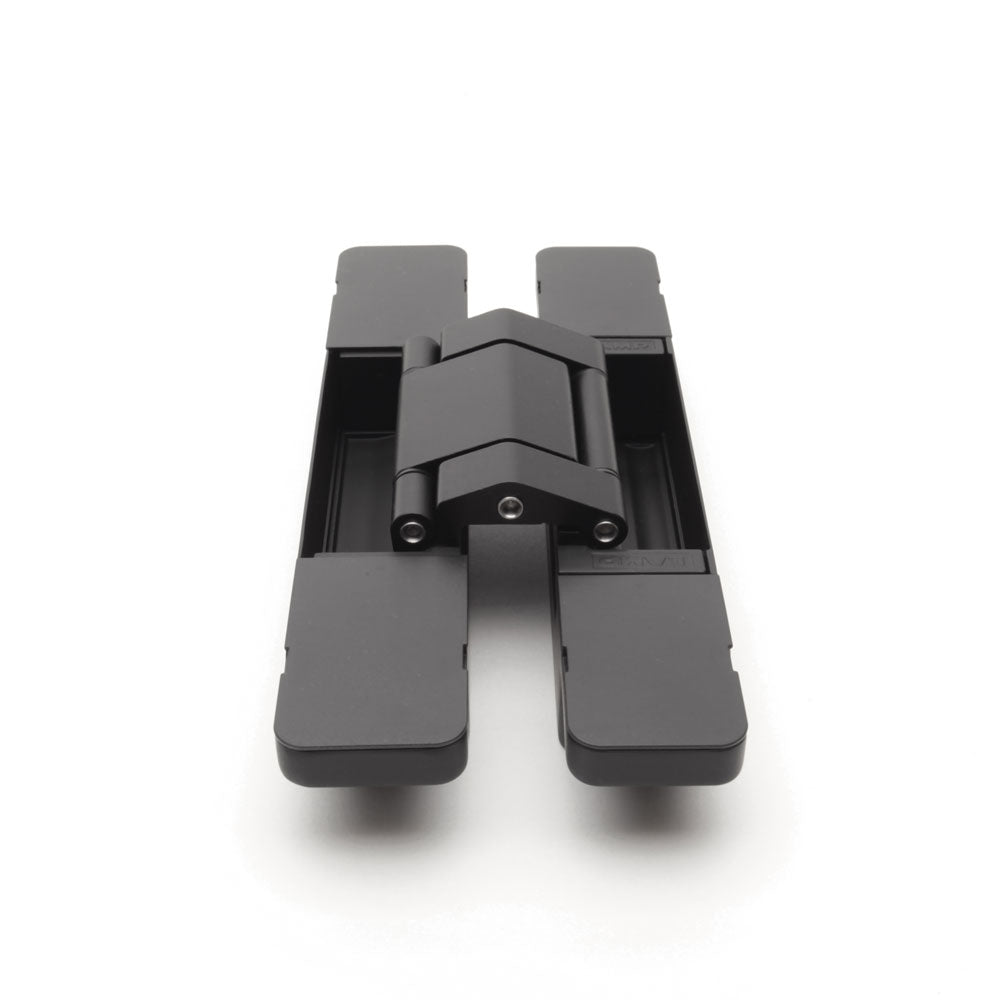

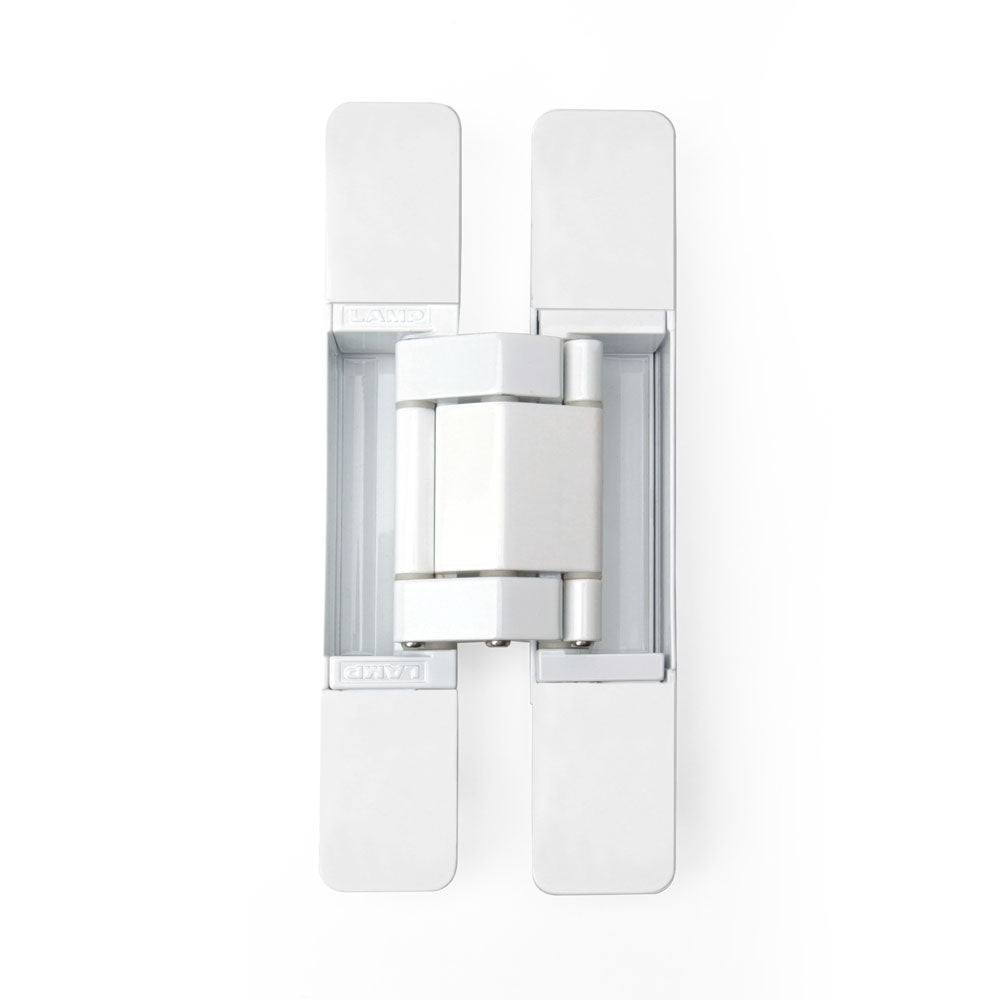

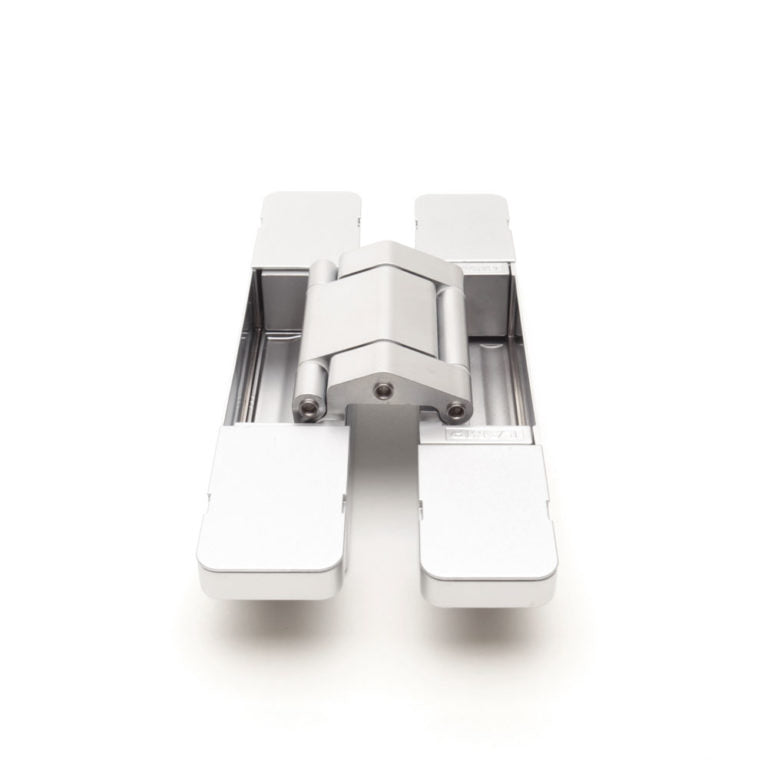

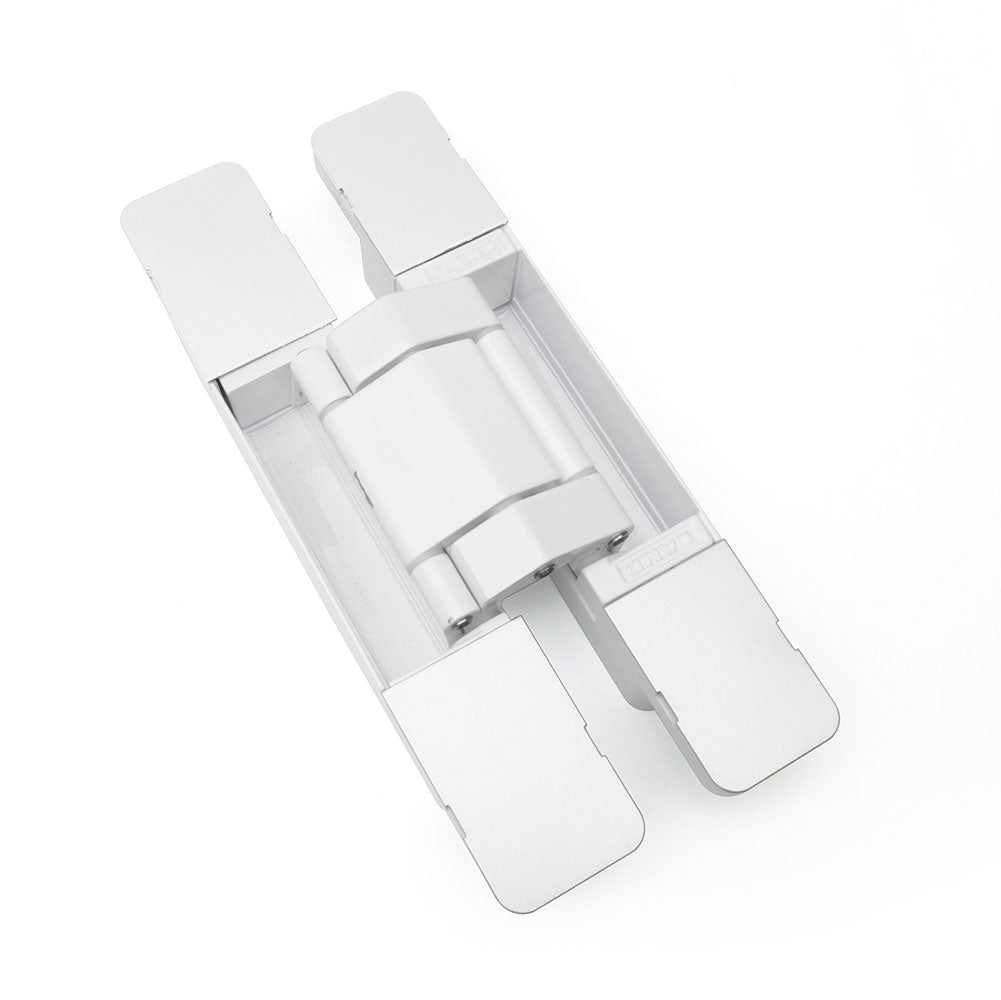

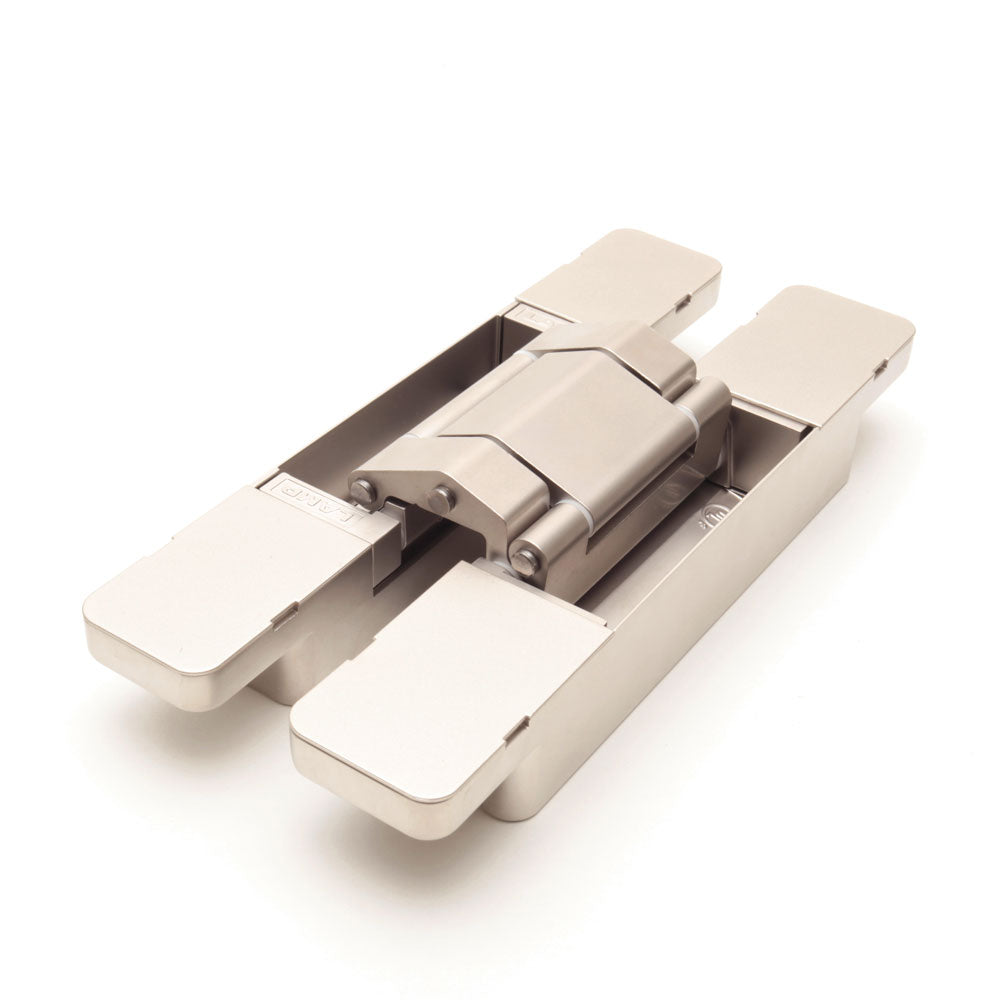

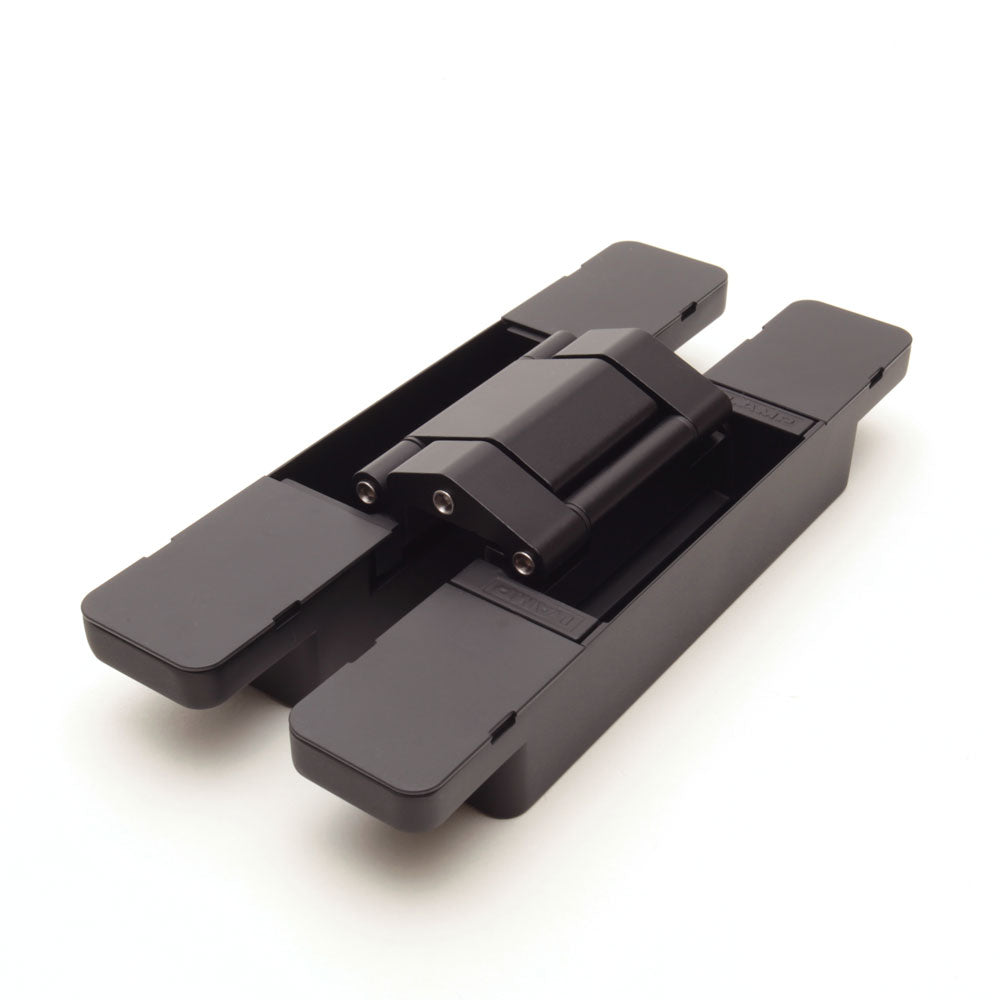

Sugatsune HES3D-E190 3-Way Adjustable Concealed Hinge

Material: Zinc Alloy
Style: Modern/Contemporary
Installation/Mounting Hardware: Included
• 3-WAY adjustment function allows vertical, horizontal, and depth
adjustment after hinge installed.
• Easy installation with LIFT-OFF FEATURE: can be split into two parts
(one for the frame and one for the flap), can temporarily be hung and
hold position without being affixed with screws.
• Successfully passed 300,000 open/close private cycle tests.
• UL Rated, up to 3 Hours
• Supplied with steel flat head screw.

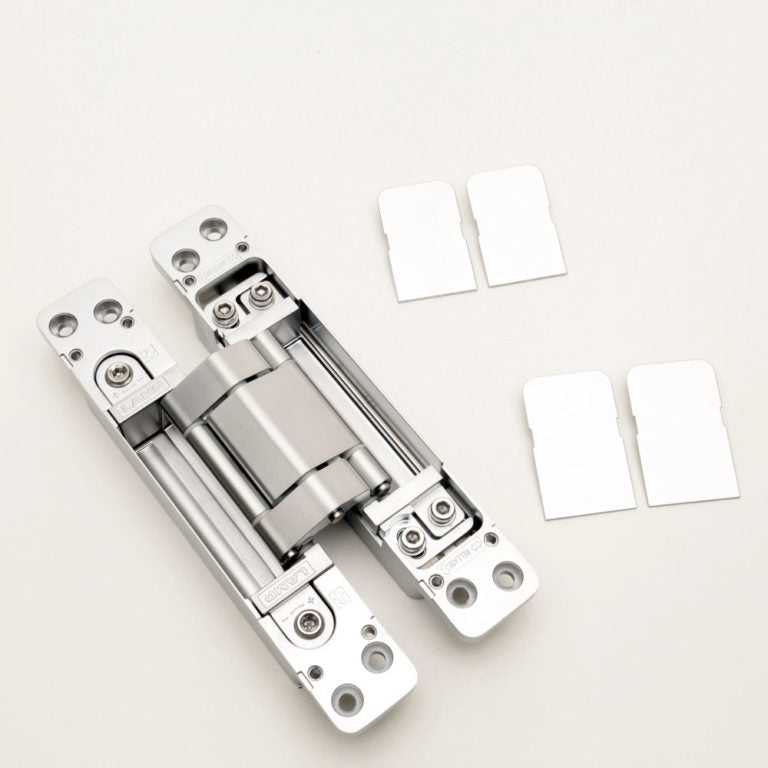

• Covers hide all screw heads for clean appearance.
• Bracket for sheet metal doors and frames available (sold separately).

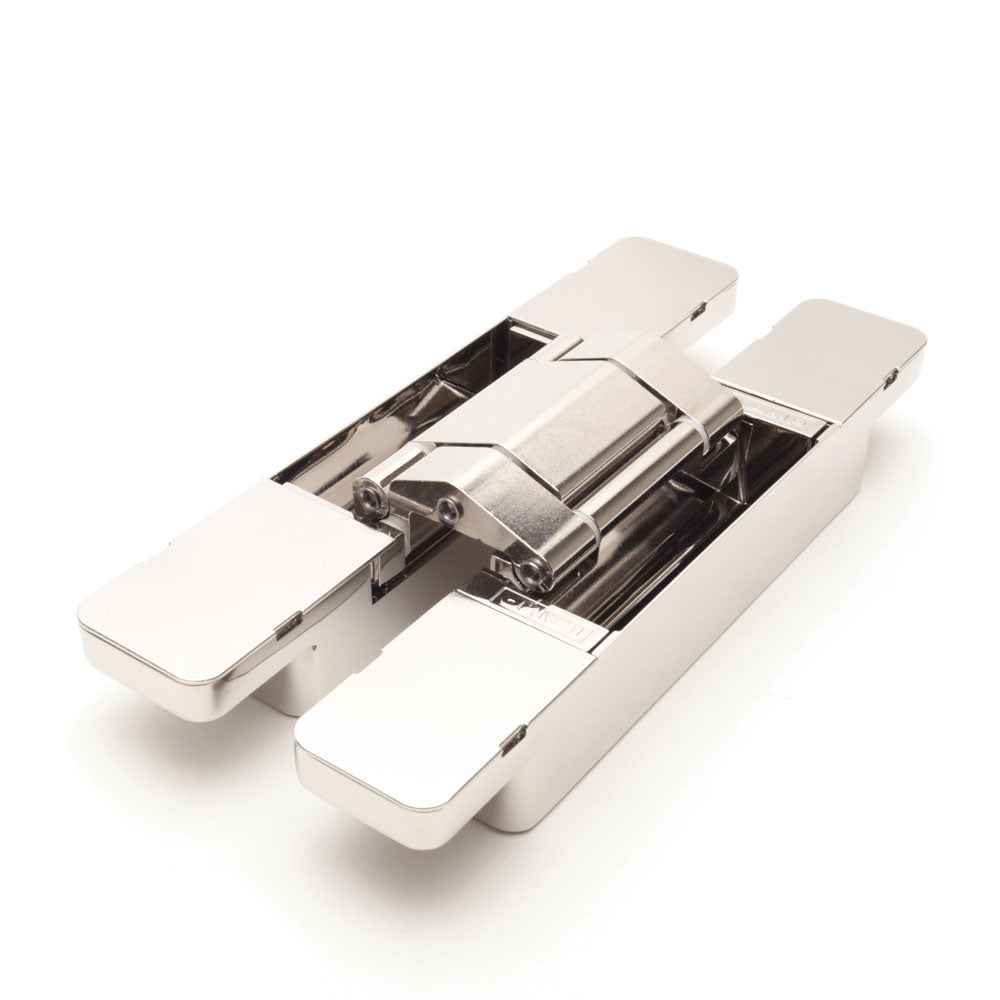

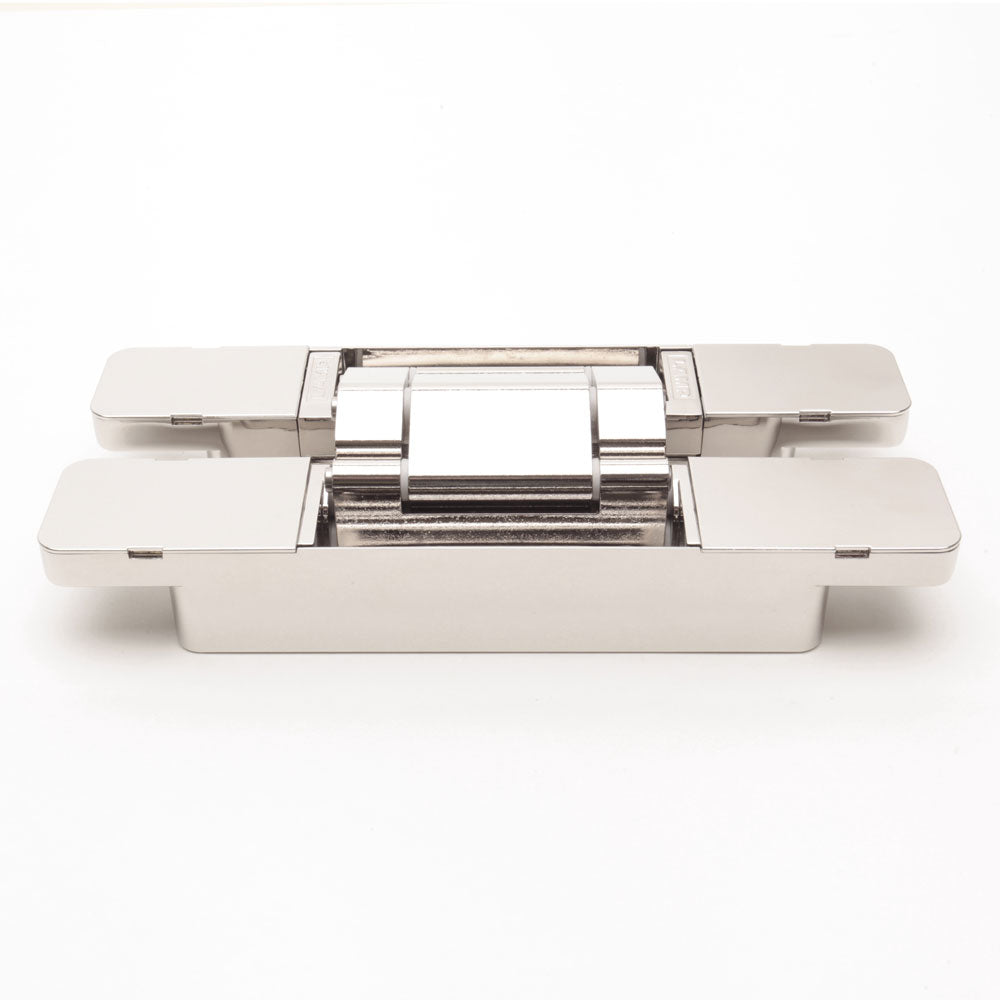

• Metal cover plates available for Polished Nickel (PN) finish
HES3D-E190PN-CM (sold seprately).
Door weight: Max. 100 kg (220 lbs)/2 pcs, 125 kg (275 lbs)/3 pcs.
Door Thickness: Min. 38 mm (1-1/2").
Max. Door Size: H 2400 mm (94-1/2") × W 914 mm (36").

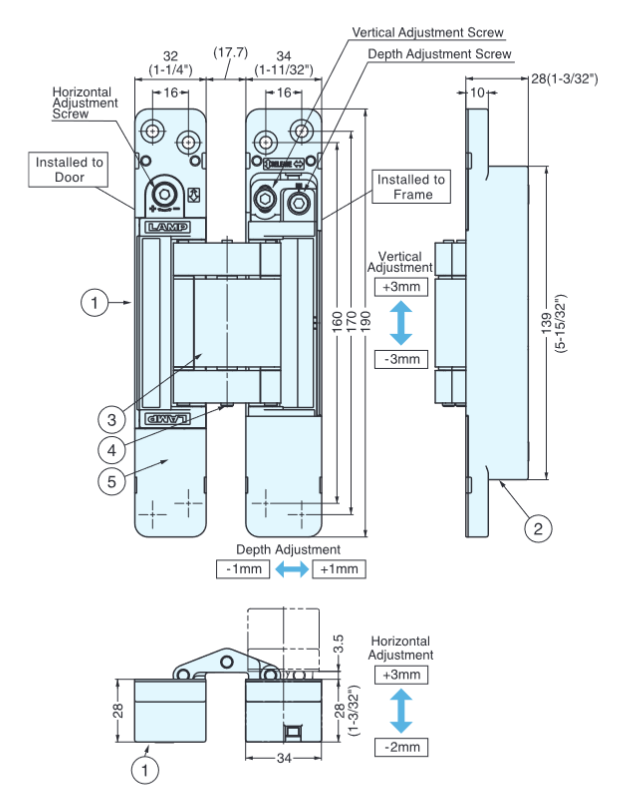

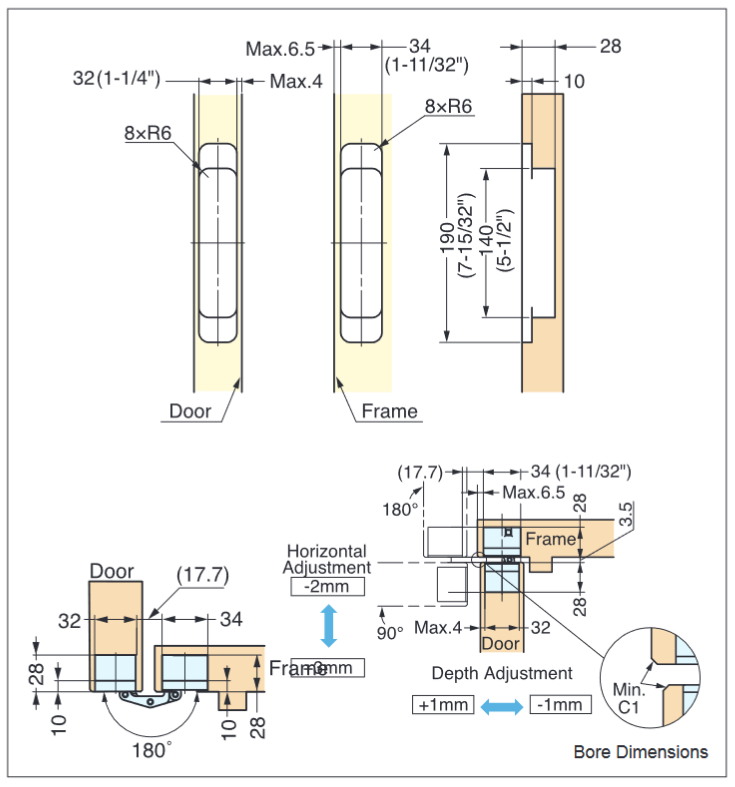

Dimensions

Resource

Spec Sheet

Installation

Template

Warranty
